Campey – SLG-78VF Soil Screener

Campey – SLG-78VF Soil Screener

Capable of re-cycling and screening sand, soil, gravel and various other materials

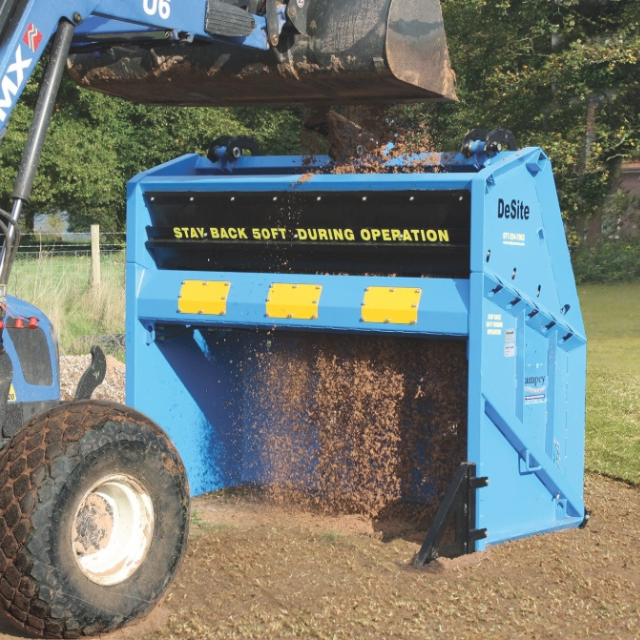

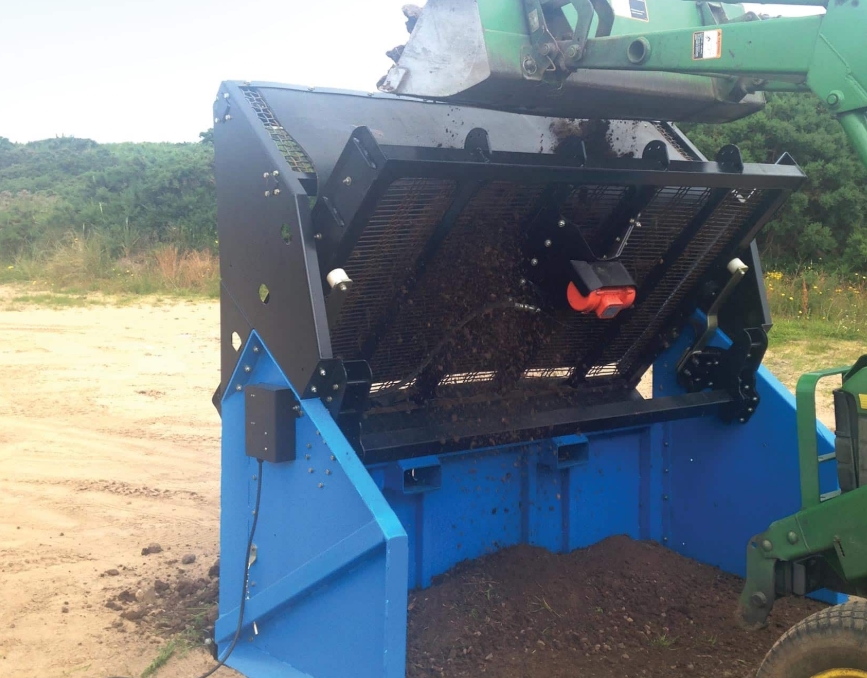

The SLG-78VF is a portable vibratory soil screener, powered by a 110v electric motor to give vibratory screen action and is designed for loading with tractor buckets or skid-steer loaders of up to 78” wide – adjustable screen angle and flow rate. Capable of recycling and screening sand, soil, gravel and various other materials, it is suitable for golf-course, sports field and municipal use. Its high mobility means it can easily be moved around a site. Standard screen size is 19mm, with additional screen sizes available as options.




Established in 1986 by Richard Campey

Richard Campey detected an untapped market need, he realised that there was a role for a specialist supplier of high quality purpose built equipment that would enable turf managers to meet the increased demands placed on modern sports turf surfaces.

What initially started out as business offering sports turf maintenance work within the North West of the United Kingdom, has now grown to be one of the leading UK’s independent distributors, with machinery available throughout Europe, Asia, Africa and the USA.





Centaur Asia Pacific is the distributor for Campey Turf Care Systems range of products in Hong Kong, Macau, Singapore and Brunei.

Updated on: 22 February 2023

Specifications

Loading width 2.13m (84″)
Overall / transport width 2.43m (96″)
Load height / Overall height 2.00m (78”) 2.20m (86”)
Weight 950kg (2,100lbs)
Depth 1.22m (48”)
Power pack Electric vibrating motor – 110v / 50Hertz (1200W req’d)
Vibratory action
Cantilevered Quad Spring Suspension
Screen angle Adjustable screen angle from 25° – 50°
Screen Mesh 220cm (86”) x 132cm (52”)
Productivity 15 – 35 yds / hour depending on screen and material
Standard screen mesh size 19mm x 100mm (3/4” x 4”)
Additional screen sizes From 6mm up to 100mm (1/4” up to 4”)
